ZH-A+ Computerized Quilting and Embroidery All-in-One Machine
Machine Performance:
Single-needle drive; individual sewing heads and needles can be selected for operation based on different pattern requirements.
Integrated quilting and embroidery completed in one process.
Y-direction utilizes roller drive.
Infeed and outfeed employ tension motors to maintain fabric flatness.
X and Y directions are controlled by Panasonic servo motors, ensuring embroidery precision.
Automatic stop function upon thread breakage.
Automatic backtracking and repair stitching function.
Allows for arbitrary selection of quilting/embroidery heads.
Connected quilting with independent patterns and jump stitch function.
Can read embroidery file formats including Tajima, PAD, ZSK, and SWF.
Unique mechanical structure reduces inherent vibration, enabling better vibration control and lower noise levels.
Japanese imported rotary hooks, made from high-quality materials with large capacity, reducing the frequency of bobbin changes.
Machine Functions:
Quilting applications: Garments, sleeping bags, summer quilts, mattresses, various cushions, etc.
This equipment is a new model incorporating both embroidery and quilting technologies. It integrates quilting and embroidery functions, resulting in even, smooth, natural, and elegant stitches.
Patterns can range from simple to complex.
The machine features reliable maintenance, making it simple and convenient.

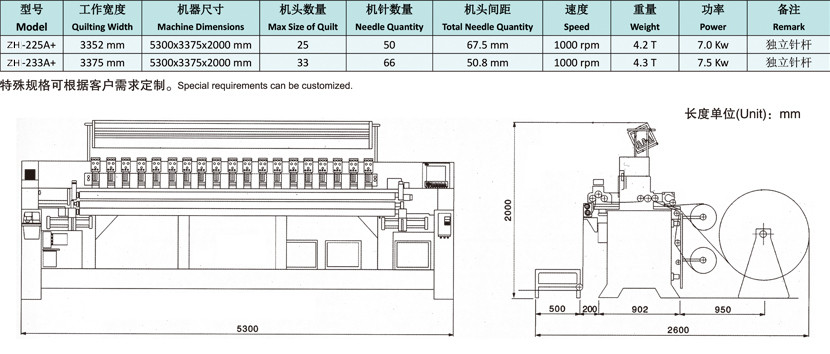

Main Parameters:
Main Shaft Motor: Servo motor
X/Y Axis Motors: Servo motors
Stitch Length: 0.15 - 12.7 mm
Rotary Hook: Model 20-R
Voltage: 3-phase 380V 50Hz
